Features
Pipelytica includes everything a pipe inspection company needs – from AI video analysis to 3D editor, architecture adviser, and DXF export.
What our AI can detect
Real validation numbers, not marketing promises. Every percentage measured on a held-out validation set.
Per-class classification accuracy
Class-by-class breakdown · 37 luokkaa · validoitu 14 706 kuvalla
Continuously learning – Our models learn from every inspection – every approved or rejected finding improves accuracy automatically.
AI can make mistakes – Because the models are continuously learning, they can make mistakes. Always verify findings before delivering a report to a customer.
27
classes ≥ 90%
3
classes 80–90%
7
classes < 80% (need more data)
Mallin tarkkuus paranee korkeammalla videoresoluutiolla. 720p+ suositeltu; alle 480p videot voivat johtaa vääriin positiivisiin tuloksiin.
Validointi: 25.4.2026 · 14 706 kuvaa
AI video analysis
Multi-model ensemble detects pipe defects from CCTV video automatically with 93%+ classification accuracy (validation). See per-class numbers in the table below.
Multi-model AI
Multiple AI models analyze video in parallel. More perspectives together = fewer mistakes, and the system continuously learns from every inspection.
Validated accuracy
See real per-class accuracies in the table above. Measured on a held-out set of 14,706 images – not marketing promises.
Active learning
AI asks the inspector for help on uncertain detections. Every feedback improves the model.
22 defects + 7 env + 8 context = 37 classes
Cracks, root intrusions, deformations, blockages, corrosion, joint failures, ice, masonry damage and more – per EN 13508-2. Plus 7 environmental states (water, fog, glare, droplets, LED reflection, dark zones, submerged) so the AI never produces false positives, and 8 context classes (bends, junctions, size changes).
Severity classification
Automatic 1-4 severity rating for every defect. Prioritization built in.
Confidence score
Every finding includes a confidence score so the inspector knows where to focus.
False positive suppression
Advanced false positive filtering eliminates unnecessary alerts. Only real defects make it to the report.
3D pipe map editor
160+ building templates, multi-floor support, and smart pipe tools in the browser.
160+ building templates
Ready-made apartment building layouts with one click. Preview before applying.
Multi-floor buildings
Add floors, manage vertical pipes, and inspect the entire building floor by floor.
Pipe bend point editing
Edit pipe routing with bend points. Automatic elbow connectors at every angle.
Smart wall-following routing
Pipes automatically route along walls. Clean, professional result.
8 pipe systems
Sewer, rainwater, cold water, hot water, ventilation, HVAC, gas, combined.
BIM metadata
Manufacturer, product code, price/m, pressure class, insulation, joint type for every pipe.
Automatic fittings
Angle changes are detected and the correct fitting is suggested automatically.
Quantity takeoff
Automatic bill of materials: lengths, parts, costs. PDF export.
Architecture adviser
26 smart checks and one-click auto-fix for design issues.
26 smart checks
Slope, diameter, minimum length, overlaps, conflicting joints, and much more.
One-click auto-fix
Fix all detected issues in one click. AI suggests the optimal solution.
Real-time notifications
Warnings and errors appear instantly during editing. No surprises at reporting time.
Intelligent guidance
The system guides users to correct solutions contextually.
Validation panel
All checks in one panel. Click an error to jump to the issue on the map.
Standards compliance
Checks based on Finnish building regulations and industry best practices.
3D visualization
First-person walkthrough, color-coded condition map, and advanced 3D inspection.
Walkthrough with collision
WASD-controlled first-person camera view. Walls and obstacles stop movement.
Color-coded condition map
Color pipes by condition, material, or age. Risk areas stand out immediately.
Screenshot annotations
Take a screenshot of the 3D view and add annotations. Attach directly to reports.
Finding popups in 3D
Click a pipe on the map to see findings in a popup. Direct link to findings tab.
Section view
Horizontal and vertical sections. Rotatable cutting plane.
Pipe inspector
Click a pipe for full info panel: material, diameter, condition, defects, video link.
Reporting & export
EN 13508-2 reports, DXF export, and versatile delivery options.
EN 13508-2 PDF reports
Standard-compliant PDF in one click. Screenshots (Premium+), severity ratings, and recommendations.
DXF/AutoCAD export
Export floor plans to DXF format. Open directly in AutoCAD or other CAD software.
Screenshot annotations
Annotations, arrows, and text on screenshots. Clear visual documentation.
Email delivery
Send reports directly to the customer. SMTP integration.
Cost estimate
Repair cost estimation by severity. Quote calculator.
Customer portal
Customers log in with their own credentials and see their reports and feedback.
Management & security
Enterprise-level access management, bilingual UI, and GDPR compliance.
Bilingual (FI/EN)
Full Finnish and English user interface. Switch languages with one click.
4 user roles
Admin, inspector, office, customer – each with their own permissions.
Company-level isolation
Each company's data is fully isolated from others.
OWASP-aligned security
Ten rounds of internal security review mapped to OWASP Top 10 categories (IDOR, mass assignment, auth, secret leakage in logs). External pentest scheduled.
Audit trail
All actions are logged. Who did what and when.
Secure login
Encrypted sessions, automatic attack protection, and login rate limiting.

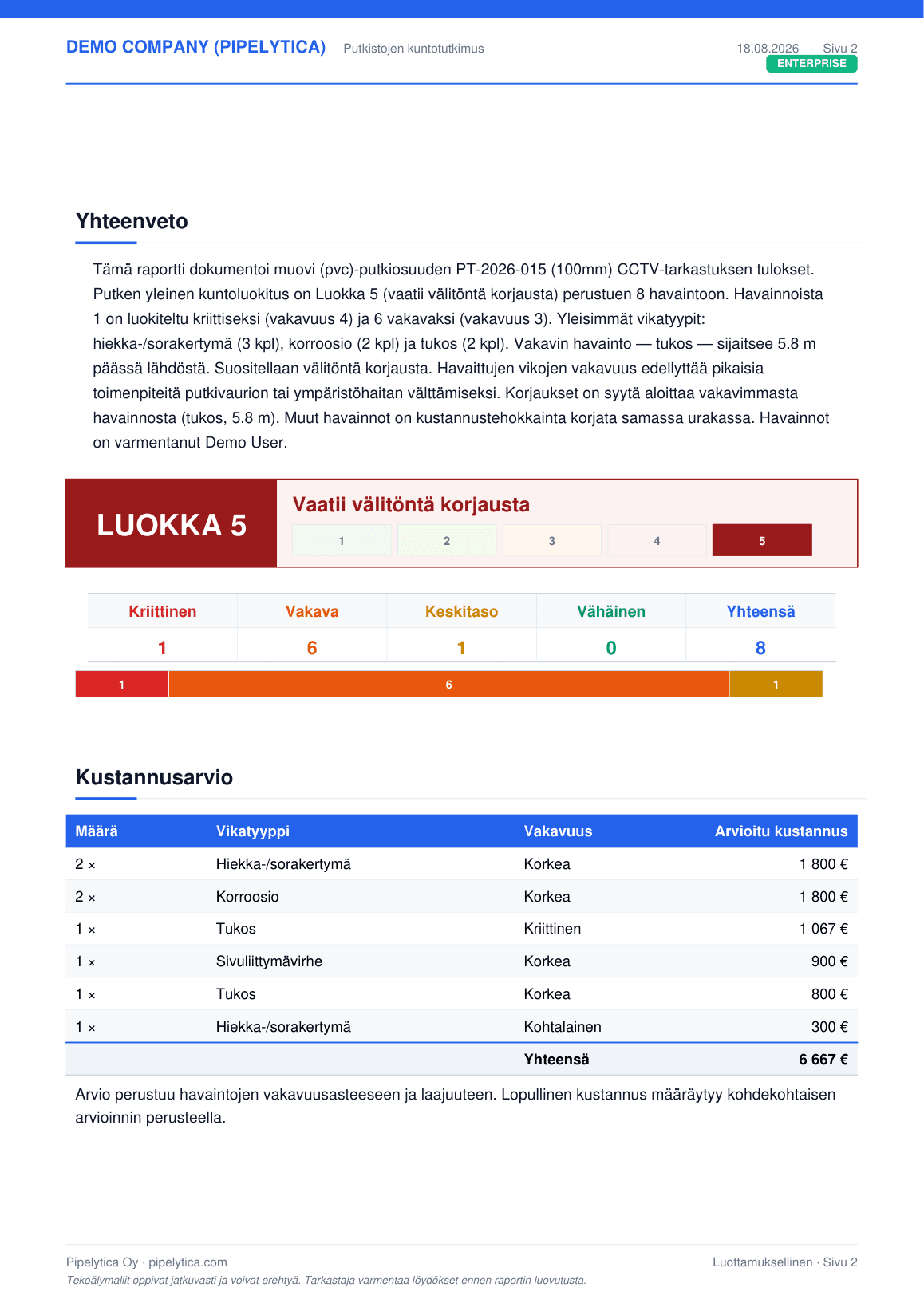

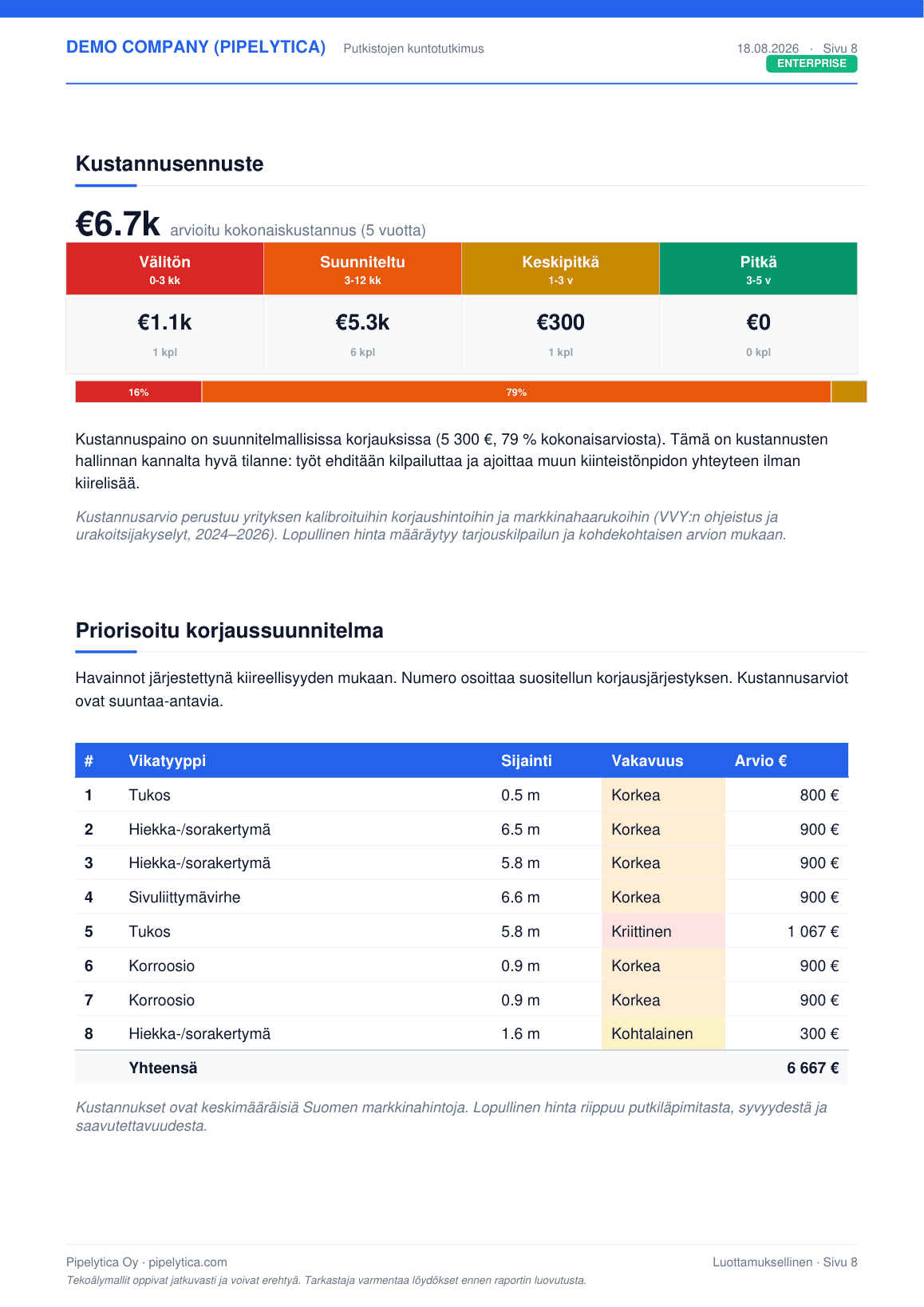

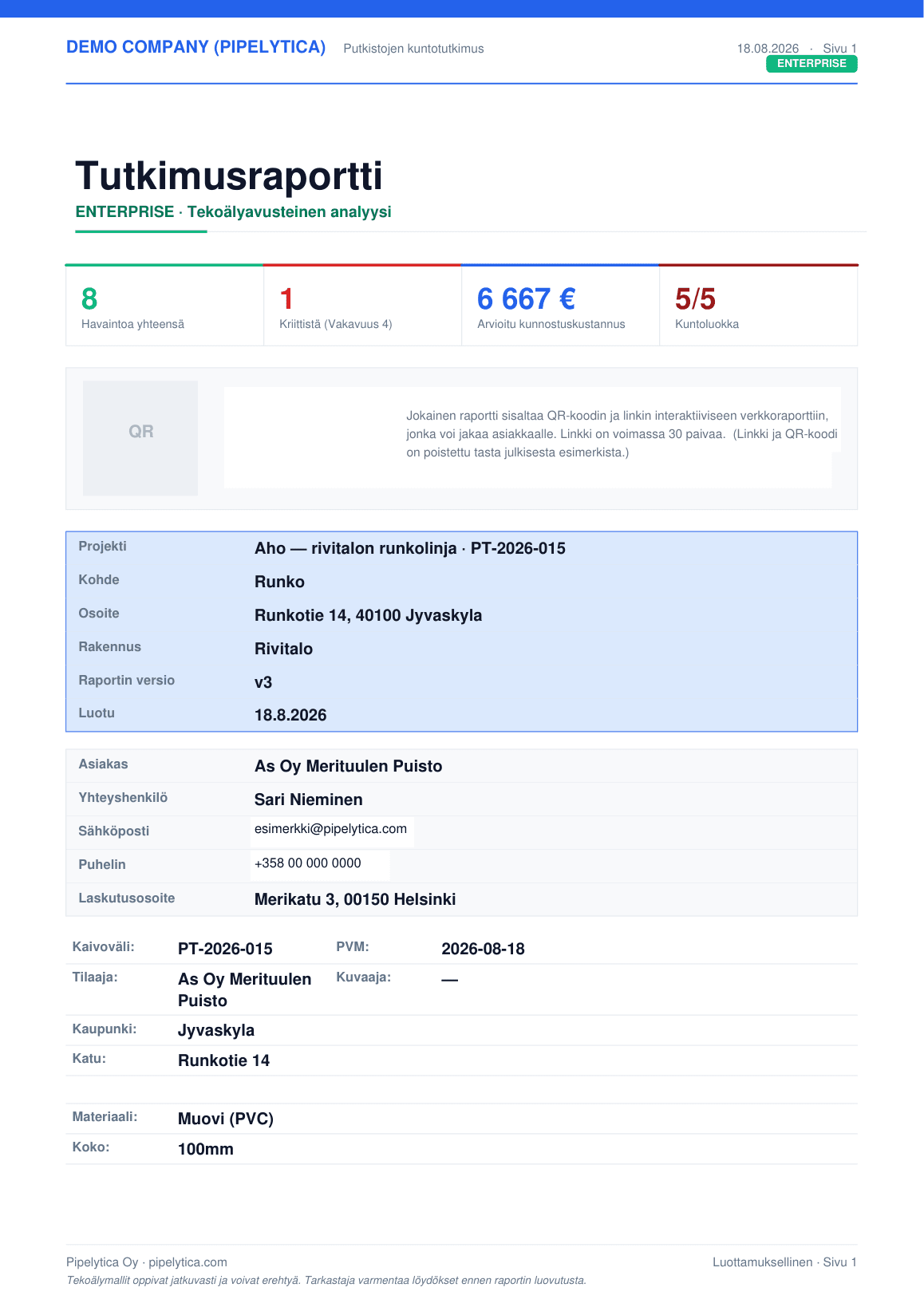

See a real example report
This is a 30-page Enterprise report produced by the system itself – not a hand-made mockup. It includes risk scoring, per-finding screenshots, cost estimates, repair scenarios and EN 13508-2 codes. Customer details and the share link have been removed.
Download the example report (PDF)30 pages · PDF
